PhysioGo 500I and 501I

Advanced technology
and ergonomic solutions

DISCOVER THEMODERN, ERGONOMIC DEVICE FOR
ELECTROTHERAPY, LASER THERAPY AND MEGNETOTHERAPY

Read about laser therapy

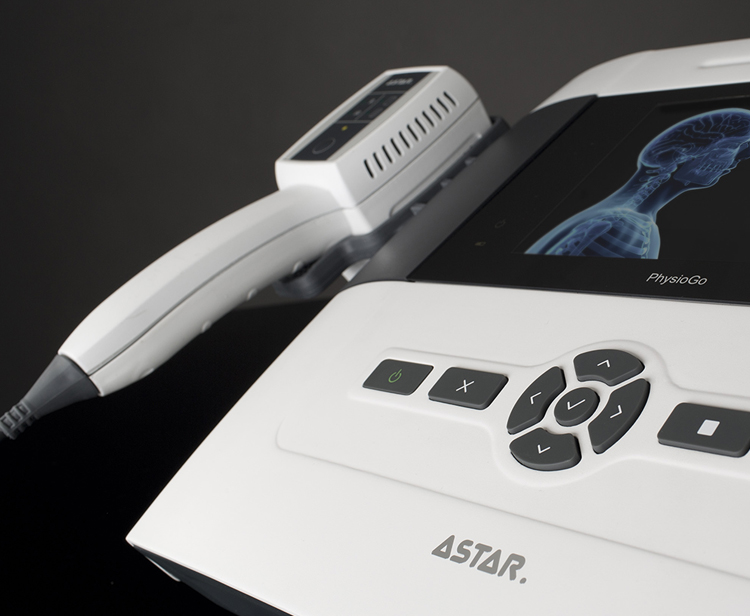

PhysioGo 500I/501I*

Electrotherapy, laser therapy and magnetotherapy unit

The modern PhysioGo 500I device is a great answer to the needs of professional physiotherapy centers. Due to its size and equipment, the device allows you to perform two-channel electrotherapy, magnetotherapy and low level laser therapy both in the physiotherapy centers and outside. It is an ideal work tool for physiotherapists and specialists in a pain therapy clinic.

Discover modern and ergonomic PhysioGo 500I unit.

* The PhysioGo 501I model has a built-in Li-Ion battery with a capacity of 2250 mAh

Benefits for the therapist

Safe physical therapy

The modern PhysioGo 500I device has been equipped with the self-test procedure (enabling current monitoring of the device’s functional status each time it is turned on). In the case of laser therapy, the device automatically tests the laser radiation power – always before the start of the procedure. Thanks to this, the user can be sure of the correct dosage of laser radiation during therapy.

The operator can independently test the electrodes used in electrotherapy and test the laser radiation power of laser probes. As a result, it has the ability to verify the lifetime of accessories – this is an additional protection.

PhysioGo 500I has two independent treatment channels which make it to be recognized as two separate electrotherapy devices. In order to provide patients with the highest level of safety during electrotherapy, galvanic separation between circuits was used in this case. As a result, it is possible to perform treatments for two patients, where each of them is galvanically separated from each other.

Many methods of treatment

Usually, to achieve the desired therapeutic effects, it is necessary to use several physical therapy methods that complement each other. The PhysioGo 500I device allows you to perform three types of treatments: low level laser therapy, electrotherapy and magnetotherapy. Two independent treatment channels enable simultaneous performance of two different therapeutic procedures. In the field of electrotherapy, PhysioGo 500I offers the availability of all common currents, i.e. TENS currents, Kotz currents, tonolysis, microcurrents, currents dedicated to spastic paralysis therapy, diadynamic, galvanic and other currents. In addition, the device has been designed to perform professional electrodiagnostics (I/t curve).

Laser therapy using the PhysioGo 500I device gives huge therapeutic possibilities in the treatment of musculoskeletal disorders and the optical fibers available in the option, expand the range of possible treatments. Importantly, the device works with all laser applicators available in the ASTAR offer (i.e. point probes, cluster laser applicator, scanning laser applicator). The maximum laser radiation power that the therapist has at his disposal is up to 1800 mW. Magnetotherapy perfectly complements electrotherapy and laser therapy offered by PhysioGo 500I – increasing the effectiveness of treatment in the case of fresh fractures, edema or sports injuries. The use of CPE plate applicators equipped with dedicated fastening straps gives the possibility of applying magnetotherapy treatment anywhere in the patient’s body. The maximum magnetic field strength is 10 mT.

Benefits for the physiotherapist

Predefined treatment programs

Like most ASTAR devices, the unit has been equipped with a modern treatment encyclopedia. It contains a description and illustration of the methodology of performing procedures for all disease entities. The user has 285 built-in treatment programs at his disposal. PhysioGo 500I has a 7-inch color display with a touch panel, which makes encyclopedia operation easy and convenient. The physiotherapists can use 38 saved electrotherapy treatment sequences or create 10 of their own.

Treatment sequences are a combination of several types of therapeutic currents into one treatment sequence. The device also allows you to use the functions of favorite programs, 8 predefined Nogier’s acupuncture programs, 30 Voll’s acupuncture programs for laser therapy and saving up to 300 user-defined programs.

Mobility

This relatively small device (only 6 kg) is an ideal work tool for physiotherapists offering home healthcare environmental therapy or qualified people who perform treatment procedures in many medical facilities. Specially adapted comfortable PRO transport bag holds a device and accessories compatible with it. PhysioGo 501I version is additionally equipped with a battery that allows up to 4 hours of device operation without the necessity to connect it to a power source.

High quality

ASTAR devices have enjoyed recognition among specialists for years. In addition to the elegant design and high quality of the components used, devices from the PhysioGo family are primarily characterized by reliability and ergonomics of the solutions used. All ASTAR devices meet the requirements of the Medical Device Directive.

Channels and connections of accessories

Detailed technical specification

Features

product code

A-UC-AST-PHG500I or A-UC-AST-PHG501I

color display with touch panel

7"

independent treatment channels

2

intensity regulation in the patient circuit for both channels simultaneously or separately

electrode test

manual mode of operation

program mode of operation

disease entities selected by name or medical field

preset treatment programs database

preset treatment sequences database

possibility of creating user programs

user sequence database

favorite programs

possibility of program names and user sequences edition

encyclopaedia describing the treatment methodology

treatment statistics

buzzer sound volume regulation

battery

for PhysioGo 501I

Electrotherapy

operation in CC (current stabilization) or CV (voltage stabilization) modes

full galvanic isolation between channels in each mode

Currents and methods

interferential isoplanar

interferential dynamic

interferential single channel AMF

TENS symmetric

TENS asymmetric

TENS alternating

TENS burst

TENS for spastic paralysis therapy

Kotz' current (Russian stimulation)

tonolysis

diadynamic (MF, DF, CP, CP-ISO, LP)

pulsed rectangular

pulsed triangular

pulsed UR according to Trabert (2 - 5)

pulsed according to Leduc (1 - 9)

pulsed neofaradic (1 - 19)

unipolar sine surge

galvanic

microcurrents

Laser therapy

operation with applicators: scanning laser, cluster laser and point probes

emission modes: continuous and pulse

regulation of laser power radiation

duty factor regulation

automatic laser radiation power test

automatic calculation of time relative to treatment parameters - dose, power, duty factor, treatment area

three modes of treatment field irradiation in scanning laser applicators

dedicated modes for working with optic fiber applicators

optical fiber applicators for laserpuncture and ENT applications

pilot beam indicating the application site

Magnetotherapy

continuous and pulse emission

field shape: sine, triangle, rectangle, half-sinus, half-triangle, half-rectangle

optional operation with one or two plate CPE applicators

convenient fastening of applicators by velcro belts

Preset treatment programs

preset treatment programs, including:

for electrotherapy

69

IR point probe programs

39

R point probe programs

18

programs with Nogier frequency

8

programs with Voll frequency

30

preset sequences for scanning laser applicators

26

cluster laser applicator programs

54

for magnetotherapy

41

user-defined programs

user-defined programs – electrotherapy

50

user-defined programs – biostimulation laser therapy

50 (for each applicator)

user-defined programs – magnetotherapy

50

favorite programs

Preset treatment sequences

preset treatment sequences for electrotherapy

38

user-defined sequences

10

Electrotherapy technical parameters

max. current intensity in the patient's circuit (CC mode)

galvanic

40 mA

diadynamic, impulse, tonolysis for unipolar stimulating pulses

60 mA

interferential, Kotz' current, unipolar sine surge, tonolysis for trigger and bipolar stimulating pulses

100 mA

TENS and SP-TENS currents

140 mA

microcurrents

1000 uA

max. voltage amplitude in the patient circuit (CV mode)

interferential, Kotz’, pulse currents, unipolar sine surge, tonolysis

100 V

TENS and SP-TENS currents

140 V

treatment timer

30 s - 60 minutes

Laser therapy technical parameters

laser device class

3B

treatment timer

1 s - 100 minutes

Laser therapy parameters - biostimulation laser point probes

red light laser point probes wavelength

660 nm

maximum power of the red light point probes

80 mW

infrared laser point probes wavelength

808 nm

maximum power of the infrared point probes

400 mW

power regulation

25%, 50%, 75%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor in pulse mode

10 - 90%, pulse 50 μs

Laser therapy parameters - scanning laser applicator

scanning laser applicator wavelength

808 & 660 nm

maximum power of the scanning laser applicator

450 & 100 mW

power regulation

50%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor for scaning laser applicator pulse mode

75%

Laser therapy parameters - cluster laser applicator

cluster laser applicator wavelength

4x 808 nm & 5x 660 nm

maximum power of the cluster laser applicator

4x 400 mW & 5x 40 mW

power regulation

50%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor in pulse mode

10 - 90%, pulse 50 μs

Magnetotherapy technical parameters

maximum magnetic field induction

10 mT

operating frequency

2 - 120 Hz

interval mode parameters

pulse 1 s / break 0,5 - 8 s

treatment timer

30 s - 30 minutes

General technical parameters

dimensions

34 x 28 x 11-16 cm

device weight

6 kg

power supply, power consumption

230 V, 50/ 60 Hz
