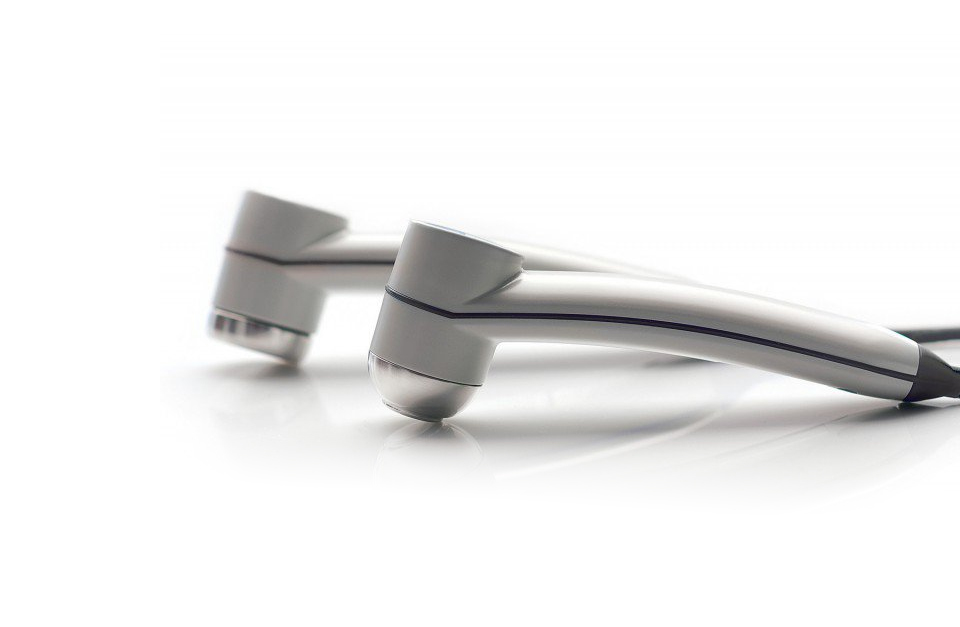

Ultrasound head
GS-4cm2 / 1MHz & 3,5 MHz
The GS-4cm2 / 1MHz & 3,5 MHz ultrasound head works with controllers from Sonaris, Etius and PhysioGo line. The head can work in two frequencies, but with devices from Etius line and with Sonaris M it can only use the frequency of 1MHz.
Detailed technical specification
Features
- product code A-AS-AST-GS4WH
- water-resistant US heads (IPX7)
- continuous/ pulse emission
- ultrasound head contact control (effective treatment time measured)
- head sensitivity calibration according to the needs
Ultrasound therapy technical parameters
- operating frequency 1 i 3,5 Mhz
- effective radiation area 4 cm²
General technical parameters
- accessory dimensions without connection cable 5 x 3,7 x 18,4 cm
- weight 0,8 kg
Cooperates with
- Etius ULM
- PHG 200A
- PHG 300A
- PHG 601C
- PHG 701C
- PHG 701I
