PhysioMG 825
Modern Premium
class device
SEE WHAT FEATURES HAS THE DEVIVE DESIGNED
BY SPECIALISTS IN MAGNETIC FIELD TREATMENT!
Modern Premium
PhysioMG 825

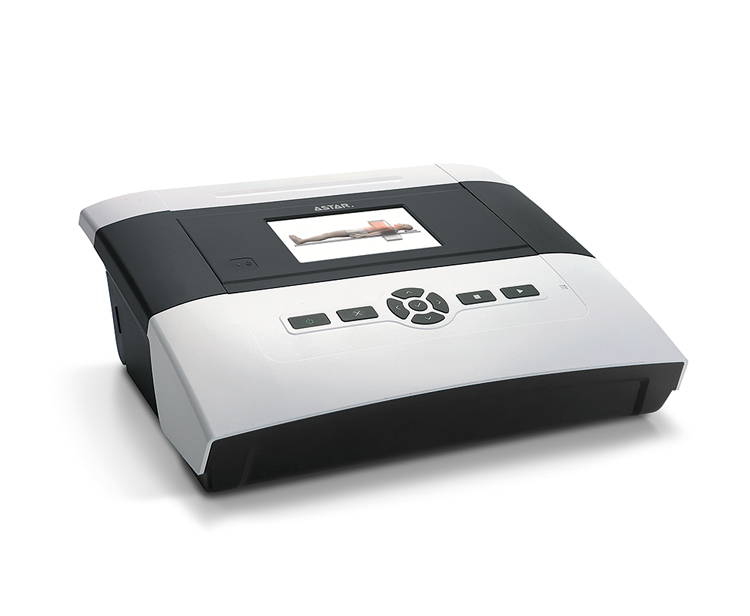

PhysioMG 825 low-frequency magnetic field therapy device allows to carry out treatments comfortably in physiotherapeutic practice centers. PhysioMG 825 was created based on modern technological solutions that enable achieving excellent therapy effects.
Benefits for the patient
Increased effectiveness of magnetotherapy
PhysioMG 825 device was created for maximum effectiveness in the magnetic field therapy. Therefore, next to the set of parameters commonly used in magnetotherapy, the PhysioMG 825 device is equipped with technology that allows the simultaneous use of two applicators, operating both locally and systemically (Dual Mode).
The device allows to obtain high intensity of the magnetic field, and the use of the therapeutic frequency change (Spectrum), in the range of 0-50 Hz during the treatment, make the effect even more comprehensive .
Activity indicator
Magnetotherapy is a non-invasive and even relaxing treatment. PhysioMG 825 allows patients to feel how the magnetic field affects the body through gentle vibrations (sensory indicator of magnetic field activity). In addition, the device is equipped with a visual indicator that determines the area of magnetic field impact (visual indicator of magnetic field activity).
Comfort during therapy

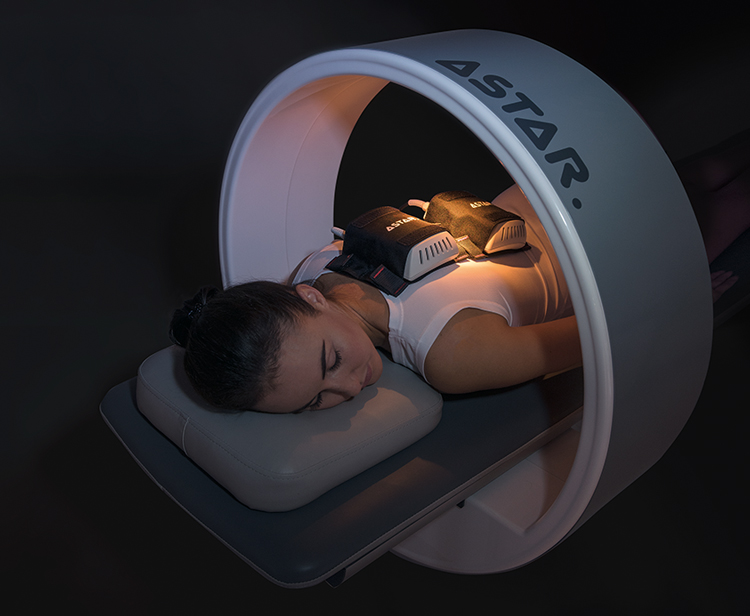

To make the magnetic field therapy a comfortable and relaxing treatment for patients, PhysioMG 825 works with a specially designed, stable magnetic field couch dedicated for a 60 cm solenoid applicator. It has a system that allows the applicator to be moved along its axis, which increases patient comfort and device operation.
Its construction has only materials that do not interfere with the magnetic field, and the ergonomic headrest allows patients to relax during the treatment.
Benefits for the therapist
One device – many possibilities
PhysioMG 825 works with applicators enabling the treatment of all diseases that can be effectively treated by the impact of alternating magnetic field. The device allows for the therapy with the use of solenoid applicators (CS60, CS35) and plate applicators (CP with a stand and CPEP). The device has two independent treatment channels, giving the opportunity to perform two treatments simultaneously using separate treatment parameters.
Predefined treatment parameters
The device has a built-in Treatment Encyclopaedia based on 3D visualizations. The operation of the device is therefore intuitive and simple. The encyclopaedia presents the methodology of individual treatments in an accessible way. The user can select from a wide base of disease entities choosing from 213 built-in treatment programs.
Modern technology
The device has a 5-inch colour touchscreen that allows precise setting of the frequency range of the magnetic field and the duration of the treatment. The physiotherapist may choose to work in program or manual mode. The device allows you to control the statistics of performed procedures and create a handy list of favorite programs. The self-test procedure provides verification of the device’s operational status each time it is turned on. PhysioMG 825 is an ergonomic, modern device to perform therapeutic treatments and rehabilitation of patients whom the magnetotherapy allows to increase the comfort of life, pain therapy and to achieve complete recovery.
The revolutionary solutions used in this model make many physiotherapy specialists decide to work with PhysioMG 825.
Detailed technical specification
Features
- product code A-UG-AST-PMG825
- color display with touch panel 5"
- independent treatment channels 2
- manual mode of operation
- program mode of operation
- disease entities selected by name or medical field
- preset treatment programs database
- possibility of creating user programs
- user sequence database
- favorite programs
- possibility of program names and user sequences edition
- encyclopaedia describing the treatment methodology
- treatment statistics
- buzzer sound volume regulation
Magnetotherapy
- continuous and pulse emission
- field shape: double-half (rectangular, triangular, sinusoidal, pulse), single-half (rectangular, triangular, sinusoidal, pulse)
- optional operation with one or two plate CPEP applicators
- convenient fastening of applicators by velcro belts
- Dual Mode treatments
- magnetic field activity visual indicator in the form of an illuminator
- magnetic field activity sensory indicators in the form of magnetic stripes
- magnetic field frequency range settings with an accuracy of 0.01 Hz using the on-screen keyboard
- treatment timer settings with an accuracy of 1 s using the on-screen keyboard
Preset treatment programs
- preset treatment programs, including:
- CS35 programs 28
- CS60 programs 50
- CP programs 46
- CPEP programs 45
- Dual Mode programs 44
- user-defined programs
- user-defined programs – magnetotherapy 50
- favorite programs
Preset treatment sequences
- user-defined sequences 10
Magnetotherapy technical parameters
- operating frequency
- solenoid applicators up to 120 Hz
- plate applicators up to 140 Hz
- maximum induction in the geometrical center of the applicator:
- CS60 solenoid applicator 4 mT
- CS35 solenoid applicator 10 mT
- CP applicator with stand 3 mT
- CPEP plate applicator 25 mT
- maximum induction at the applicator site
- CS60 solenoid applicator 6 mT
- CS35 solenoid applicator 12 mT
- CP applicator with stand 12.5 mT
- CPEP plate applicator 50 mT
- maximum induction change value
- CS60 solenoid applicator 12 mT
- CS35 solenoid applicator 24 mT
- CP applicator with stand 25 mT
- CPEP plate applicator 100 mT
- interval mode parameters pulse 1 s / break 0.5 - 8 s
- frequency spectrum 0 - 50 Hz
- treatment timer 30 s - 60 minutes
General technical parameters
- dimensions 34 x 28 x 11 cm
- device weight 7 kg
- power supply 230 V, 50/ 60 Hz
Standard parts
- fastening belt 120 x 5 cm
- fastening belt 60 x 5 cm
- instructions for use
- magnet
- mains cable
- protective glasses for the patient
- self-adhesive velcro loop 100 x 2 cm
- sensory indicator of magnetic field activity
- spare fuses
- touchscreen cloth
- touchscreen pen
Optional parts
- CP applicator with stand
- CPEP plate applicator
- CS35 solenoid applicator
- CS60 solenoid applicator
- magnetic field couch
- trolley for CS35 magnetic field applicator
Magnetotherapy
Magnetotherapy treatment is an effective and painless method of treating soft tissue and bone injuries.
