CP plate applicator

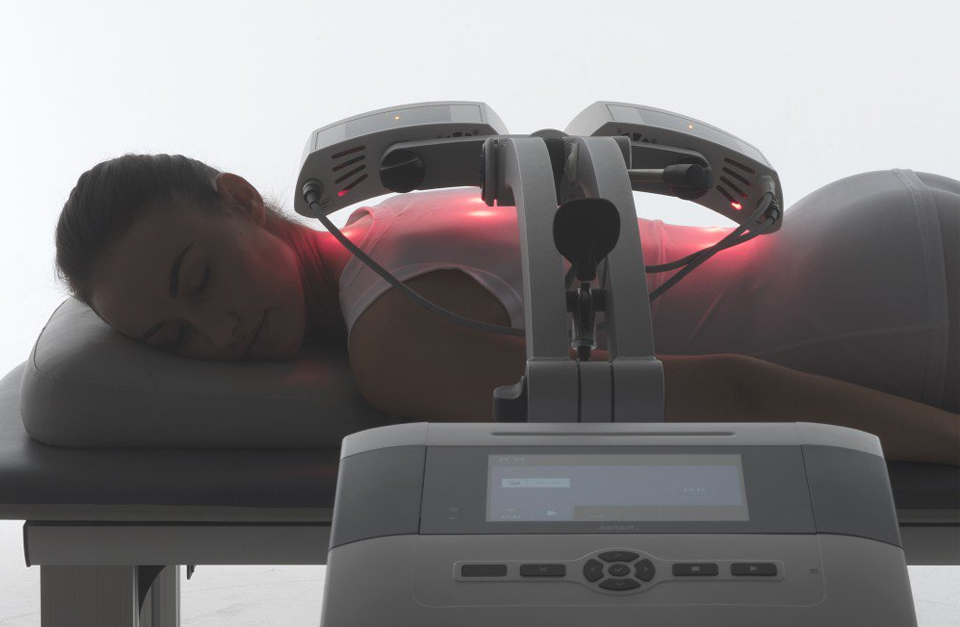

CP plate applicator on a stand is dedicated to work with PhysioMG 815, PhysioMG825 and PhysioMG 827 units. The plate applicator is equipped with an illuminator, i.e. a visual indicator of the magnetic field activity. 4 wheels with brakes ensure mobility and stability.
Stand base size area: 650 x 750 mm
Height stand adjustment range: 400-1100 mm
Adjustment angle of CP applicator rotation: 150
Dimensions of the CP applicator single coil: 200 x 69 x 150 mm
Detailed technical specification
Features
- product code A-AG-AST-CPV2
- magnetic field activity visual indicator in the form of an illuminator
- magnetic field activity sensory indicators in the form of magnetic stripes
- running system with brakes
Magnetotherapy technical parameters
- maximum induction in the geometrical center of the applicator: 3 mT
- maximum induction at the applicator site 12,5 mT
- maximum induction change value 25 mT
General technical parameters
- accessory dimensions without connection cable 20,0 x 6,9 x 15,0 cm
- size area needed for the stand base 65,0 x 75,0 cm
- stand height adjustment 40,0 - 110,0 cm
- applicator rotation adjustement angle 150⁰
- weight 5,5 kg
- weight with a stand 29 kg
Cooperates with
- PMG 815
- PMG 825
- PMG 827
Standard parts
- none
Optional parts
- none
