PhysioGo 601C

Effective pain therapy,
biostimulation
and regeneration

DISCOVER THE POSSIBILITIES OFFERED BY THERAPY
WITH THE NEW DEVICE FOR ULTRASOUND THERAPY
AND LASER THERAPY PHYSIOGO 601C

Read about ultrasound therapy

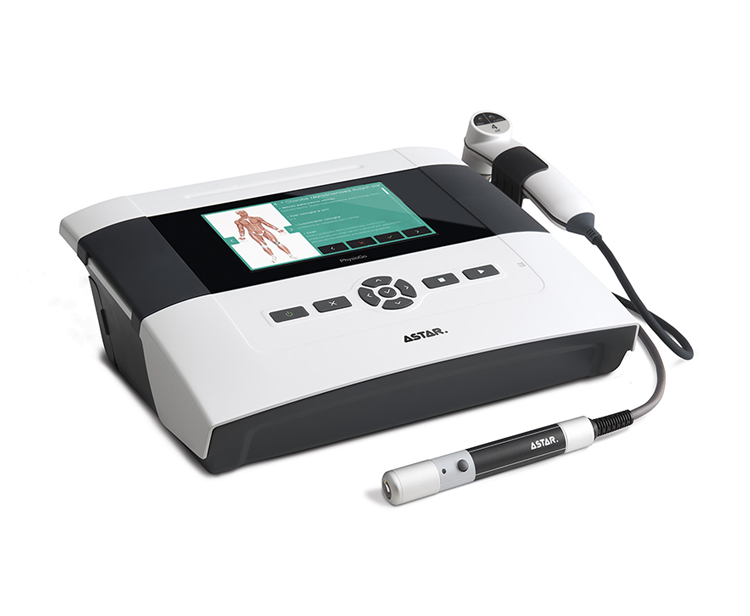

PhysioGo 601C

Laser therapy and ultrasound therapy unit

Ultrasound therapy and laser therapy are physical therapy methods focused on stimulating tissue regeneration. PhysioGo 601C combines the features of a laser therapy device and ultrasound therapy unit, creating excellent tools for specialists in the field of rehabilitation, pain therapy and rheumatic ailments as well as the treatment of musculoskeletal disorders.

Benefits for the patient

Ultrasound therapy

The ultrasound heads, generating 3,5 MHz and 1 MHz frequency waves, allow ultrasound therapy to treat both shallow tissues and tendons (3,5 MHz) as well as deeply located muscles and joints affected (1 MHz). PhysioGo 601C provides the user with a full spectrum of possibilities, enabling operation in the continuous mode (thermal effect) or pulsed emission (micro massage). The device very precisely monitors the emission of ultrasound waves during the procedure and automatically controls the emitted power. Depending on the patient’s needs and the treatment area, ultrasound waves can be emitted using a 1cm2 or 4cm2 ultrasound head.

Laser therapy

Tissue biostimulation with laser rays is a safe and painless procedure. PhysioGo 601C device also works with a scanning applicator, cluster applicator and point probes. These applicators operate at wavelengths of 660 nm and 808 nm. Point probes can be equipped with optical fibre applicators.

Therapy at the patient’s home

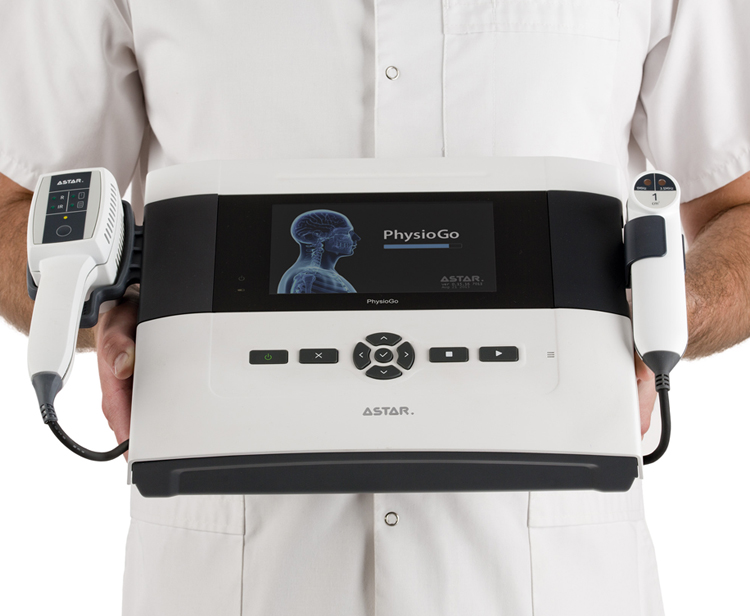

This small device can be easily transported to perform home healthcare environmental therapy. Designed by the ASTAR specialists, a convenient transport bag allows to carry the device and its accessories. The device can work up to 5,5 hours regardless of power sources thanks to its capacious battery. This is especially important when the therapy takes place at the patient’s home or in a place with difficult access to electricity. The battery eliminates the need to adapt the workplace to the capabilities of the room.



Benefits for the therapist

Aesthetics and ergonomics

In addition to advanced technology, the PhysioGo 601C offers modern design, simplified operation and a reliable 7-inch display with touch panel. Using the devices in program mode is simple and convenient. The devices have 233 built-in treatment programmes, 30 Voll’s acupuncture programmes and 8 Nogier’s acupuncture programmes. To provide the user with convenience, the devices allows creating a handy list of favourite programmes, and for advanced users, the possibility of saving up to 250 user programmes and giving them their own names. The instruments have two completely independent treatment channels, which allow simultaneous treatment of two conditions in one person.

Safety

The PhysioGo 601C has software that automatically monitors its performance. The implemented self-test procedure allows a real-time check of the device’s performance status each time it is switched on. Once this is completed, the screen shows the accessories that are connected and ready for use. The sonotherapy mode has a monitoring system that controls the emission of ultrasound waves and the adhesion of the ultrasound head front (linked to the treatment timer).



Both versions comply with the requirements of the European Parliament and Council Regulation (EU) 2017/745 (MDR).





Treatment encyclopedia

What distinguishes the PhysioGo family units is the ability to view a wide treatment encyclopedia on the device describing the methodology of treatments for individual disease entities. Using the treatment encyclopedia, it is possible to conveniently filter results based on medical fields covering a given disease.

Channels and connections of accessories

Detailed technical specification

Features

product code

A-UC-AST-PHG601C

color display with touch panel

7"

independent treatment channels

2

manual mode of operation

program mode of operation

disease entities selected by name or medical field

preset treatment programs database

possibility of creating user programs

favorite programs

possibility of program names edition

encyclopaedia describing the treatment methodology

treatment statistics

buzzer sound volume regulation

battery

battery

Ultrasound therapy

water-resistant US heads (IPX7)

continuous/ pulse emission

ultrasound head contact control (effective treatment time measured)

head sensitivity calibration according to the needs

Laser therapy

operation with applicators: scanning laser, cluster laser and point probes

emission modes: continuous and pulse

regulation of laser power radiation

duty factor regulation

automatic laser radiation power test

automatic calculation of time relative to treatment parameters - dose, power, duty factor, treatment area

three modes of treatment field irradiation in scanning laser applicators

dedicated modes for working with optic fiber applicators

optical fiber applicators for laserpuncture and ENT applications

pilot beam indicating the application site

Preset treatment programs

preset treatment programs, including:

for ultrasound therapy

58

IR point probe programs

39

R point probe programs

18

programs with Nogier frequency

8

programs with Voll frequency

30

preset sequences for scanning laser applicators

26

cluster laser applicator programs

54

user-defined programs

user-defined programs – ultrasound therapy

50

user-defined programs – biostimulation laser therapy

50 (for each applicator)

favorite programs

Ultrasound therapy technical parameters

operating frequency

1 & 3.5 MHz

effective radiation area

1 cm², 4 cm²

maximum ultrasound wave intensity

2/3 W/cm²

frequency in pulse mode

16 Hz, 48 Hz, 100 Hz

duty factor in pulse mode

5 - 75 %, step 5%

treatment timer

30 s - 30 minutes

Laser therapy technical parameters

laser device class

3B

treatment timer

1 s - 100 minutes

Laser therapy parameters - biostimulation laser point probes

red light laser point probes wavelength

660 nm

maximum power of the red light point probes

80 mW

infrared laser point probes wavelength

808 nm

maximum power of the infrared point probes

400 mW

power regulation

25%, 50%, 75%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor in pulse mode

10 - 90%, pulse 50 μs

Laser therapy parameters - scanning laser applicator

scanning laser applicator wavelength

808 & 660 nm

maximum power of the scanning laser applicator

450 & 100 mW

power regulation

50%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor for scaning laser applicator pulse mode

75%

Laser therapy parameters - cluster laser applicator

cluster laser applicator wavelength

4x 808 nm & 5x 660 nm

maximum power of the cluster laser applicator

4x 400 mW & 5x 40 mW

power regulation

50%, 100%

pulse mode frequency

1 - 5000 Hz

duty factor in pulse mode

10 - 90%, pulse 50 μs

General technical parameters

dimensions

34 x 28 x 11-16 cm

device weight

6 kg

battery type

Li-ion

battery capacity

2250 mAh or 3400 mAh

power supply

230 V, 50/ 60 Hz
